Description
M-FIRE AG EX - 323 lm, 288 m beam distance, IP54, 4xAA batteries, ATEX certification (Zone 0), weight 354 g with batteries, attachment clip, dust and splash resistance, ergonomic switch
Key Features of the Mactronic M-Fire AG Ex
Highest Level of Safety - ATEX Certified
The M-Fire AG is intrinsically safe, meaning it will not become a source of ignition. This prevents accidents in Zone 0, where the explosion risk is significant. The flashlight has ATEX certification, confirming compliance with EU directives for equipment used in explosive atmospheres.
Precise Lighting
Emitting a maximum light output of 323 lumens, the M-Fire AG guarantees excellent visibility even in the most challenging conditions, such as smoke, gas, fog, or condensation.
Long-Distance Illumination
With a light range of up to 288 meters, it effectively illuminates large areas, which is invaluable during rescue operations or work in extensive spaces.
Easy Power Supply
The flashlight is powered by four AA batteries, which are easy to replace, ensuring long-lasting operation.
Protection in Demanding Conditions
With an IP54 rating, the flashlight is resistant to dust and water splashes, enhancing its durability and functionality in various work environments.
Safety in Any Situation
The maximum surface temperature of the flashlight is 135°C, making the M-Fire AG safe for use in explosive atmospheres.
pplications - M-Fire AG Ex
Rescue and Firefighting

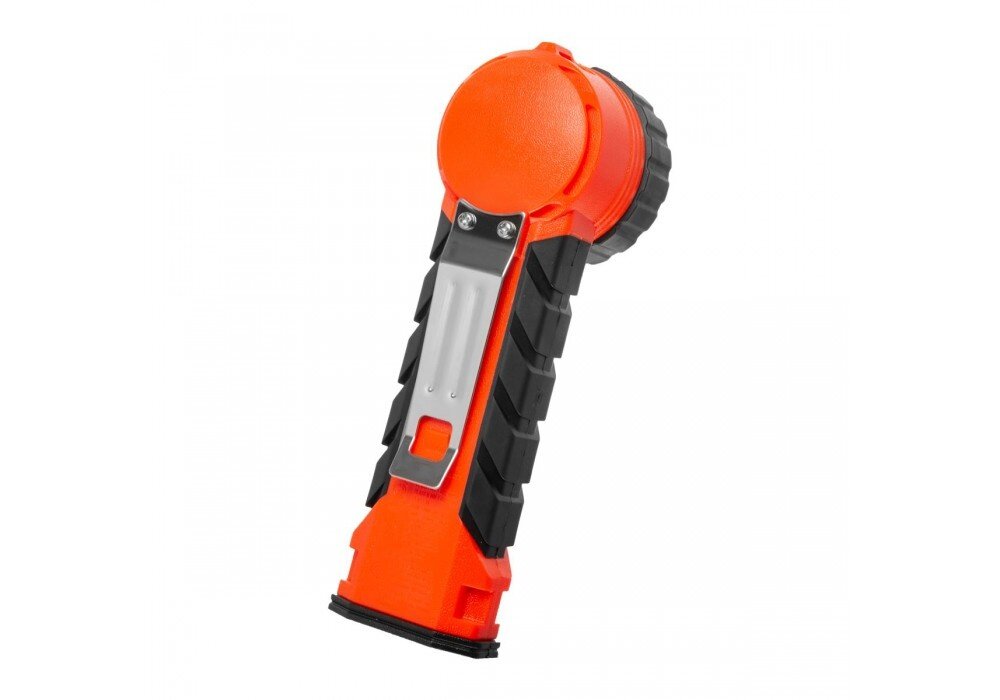

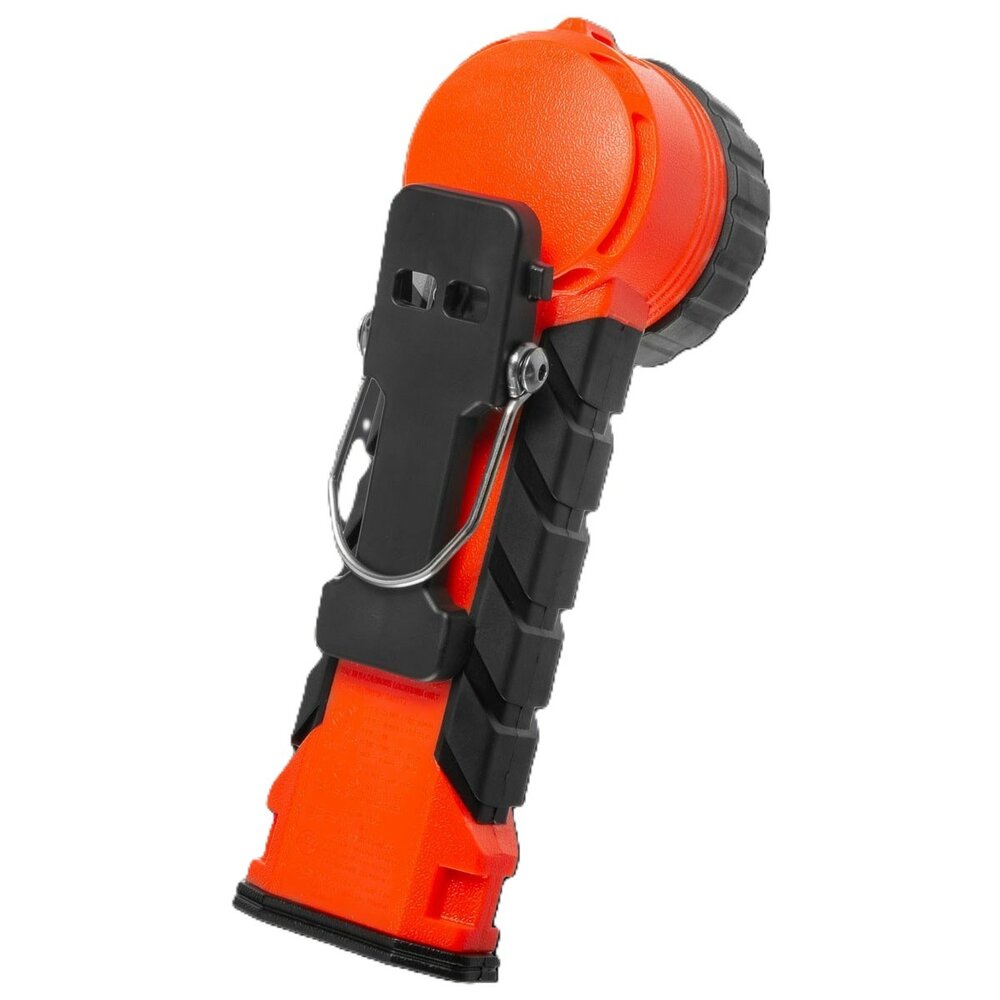

The M-Fire AG flashlight is an excellent tool for rescuers and firefighters working in high-risk explosion environments. It provides effective operation even with thick gloves, and its clip allows attachment to gear or clothing, increasing functionality during operations in challenging conditions.
Industry
The M-Fire AG flashlight is ideal for workers in refineries and drilling platforms, chemical plants, petrochemical industries, oil, gas, and energy sectors, pharmaceuticals, plastics, and automotive industries. It is designed for use in the most dangerous Zone 0, where explosive atmospheres are constantly present, and high concentrations of flammable gases, vapors, and mists occur. It offers the highest level of intrinsic safety protection.
Mining
The flashlight has the highest level of intrinsic safety for Zone 0, where explosive concentrations of mine gas and methane are constantly present. This ensures that it will not become a source of ignition in explosive atmospheres. It can be used during mining emergencies, crucial for miners' safety.
POWER SUPPLY |
4 × AA |
|
LIGHT OUTPUT |
RUN TIME |
BEAM DISTANCE |
PEAK BEAM INTENSITY |
HIGH |
323 lm |
6 h 30 min |
288 m |
20 788 cd |
MEDIUM |
140 lm |
13 h |
184 m |
8524 cd |
ATEX No |
I M1 Ex ia I Ma / II 1G Ex ia IIC T4 Ga Sira 15ATEX 2166Xg |
IP RATING |
IP54 |
IMPACT RESISTANCE |
1 m |
DIMENSIONS |
183 × 63 × 69 mm |
WEIGHT |
250 g (without batteries), 354 g (with batteries) |
